KWIK Portable Type 2 Charger | w/ Adaptable Tails | 16.5kW

KWIK Portable Type 2 EV Charger with Adaptable Tails – Up to 16.5kW

One portable EV charger. Multiple power outlets. Charging speeds up to 16.5kW.

The KWIK Portable Type 2 EV Charger is an extremely versatile charging solution for EV owners who need the flexibility to charge from a wide range of single-phase and three-phase power outlets.

With its interchangeable adaptable power tails, the KWIK can be used from a standard Australian 10A household outlet right through to a 32A three-phase outlet. It’s ideal for travelling, regional driving, workplaces, workshops, farms, holiday properties or simply keeping in your vehicle as a powerful backup charging solution.

Instead of carrying multiple EV chargers, the KWIK gives you one portable charger capable of adapting to different power supplies.

Key Features

• Up to 16.5kW AC charging
• Type 2 vehicle connector
• Supports single-phase and three-phase power
• Automatic plug recognition
• Intelligent power adjustment
• 1.8-inch colour LCD display
• Heavy-duty IP66 weather protection
• Integrated electrical safety protection
• Approx. 6.8 metre total length
• Supplied with multiple interchangeable power tails
• Includes carry case
• Suitable for a huge range of Type 2 electric vehicles
• Compact portable design – ideal for keeping in your EV

Multiple Charging Options

The included adaptable tails allow the charger to operate from several commonly available Australian outlets:

240V Single Phase

• 10A outlet – charging up to 8A
• 15A outlet – charging up to 15A
• 32A 3-pin outlet – charging up to 32A

415V Three Phase

• 20A 5-pin outlet – charging up to 16A per phase
• 32A 5-pin outlet – charging up to 24A per phase

Maximum available charging power is approximately 16.5kW, subject to the connected power supply and the maximum AC charging capability of your vehicle.

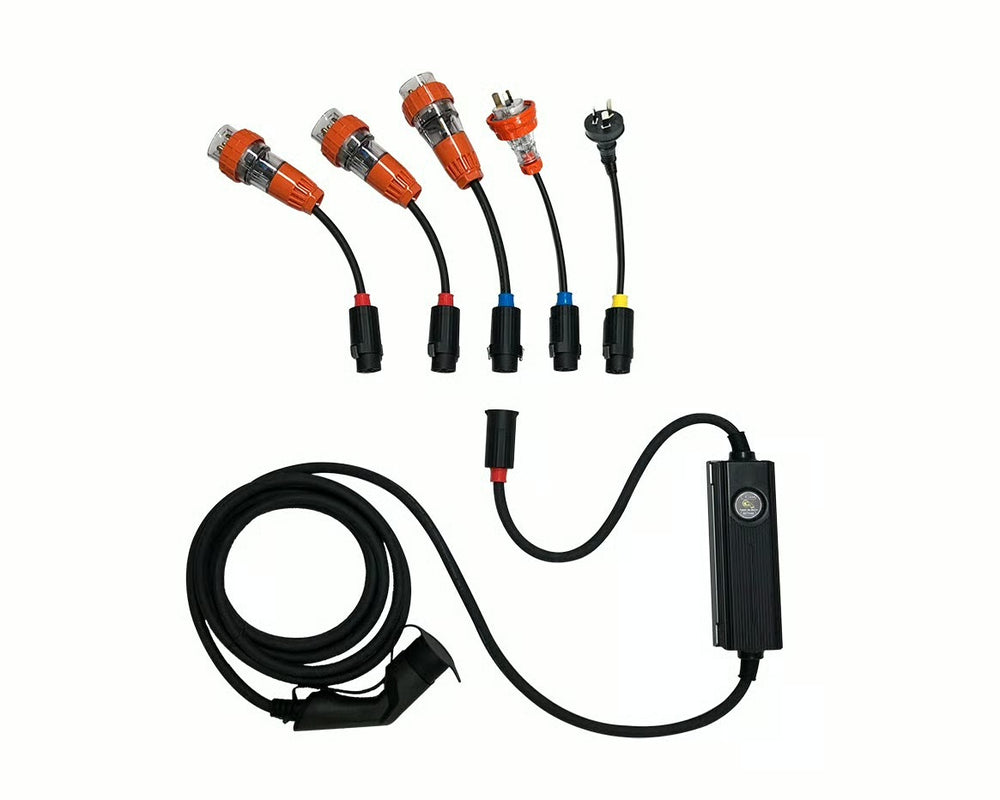

What’s Included

• KWIK Portable Type 2 EV Charger
• 240V 10A single-phase tail
• 240V 15A single-phase tail
• 240V 32A single-phase tail
• 415V 20A three-phase tail
• 415V 32A three-phase tail
• Carry case

Built-In Safety Protection

The KWIK incorporates multiple protection systems designed for safe EV charging, including:

• Over-voltage protection
• Under-voltage protection
• Overload protection
• Short-circuit protection
• Earth leakage protection
• Over-temperature protection
• Lightning protection
• Type A / Type A + 6mA DC residual-current protection

Technical Specifications

Maximum Power: Up to 16.5kW
Voltage: 230V / 400V AC
Frequency: 50Hz
Vehicle Connection: Type 2 – IEC 62196-2
Ingress Protection: IP66
Display: 1.8-inch colour LCD
Cable/Charger Length: Approx. 6.8m
Weight: Approx. 7.5kg
Operating Temperature: -25°C to +55°C
Cooling: Natural cooling
Standby Consumption: <8W
Maximum Operating Altitude: <2,000m

Perfect for Travelling EV Owners

The biggest advantage of the KWIK is flexibility. Arrive somewhere with only a standard 10A outlet available? You can charge. Have access to a 15A or 32A single-phase socket? Swap the tail and increase your charging rate. Find a suitable three-phase outlet? The same charger can take advantage of substantially higher charging power.

For EV owners travelling throughout Australia—particularly through regional areas where dedicated EV charging infrastructure may be limited—the KWIK provides an excellent charging option to keep in the vehicle.

Vehicle Compatibility

Designed for Type 2 equipped electric vehicles, including compatible models from Tesla, BYD, Kia, Hyundai, MG, Polestar, BMW, Mercedes-Benz, Audi, Volkswagen, Volvo, Porsche, Toyota, Nissan, Ford, XPeng, Zeekr and many more.

Important: Actual charging speed depends on the available electrical supply and your vehicle’s onboard AC charger. A vehicle with an 11kW AC charging limit, for example, will not charge at 16.5kW even when connected to a suitable three-phase supply.

KWIK Portable Type 2 – one charger that gives you the flexibility to charge almost anywhere you can find a suitable power outlet.
