Ocular LTE Plus V3 | w/6m Type 2 Cable | 22 kW Three Phase

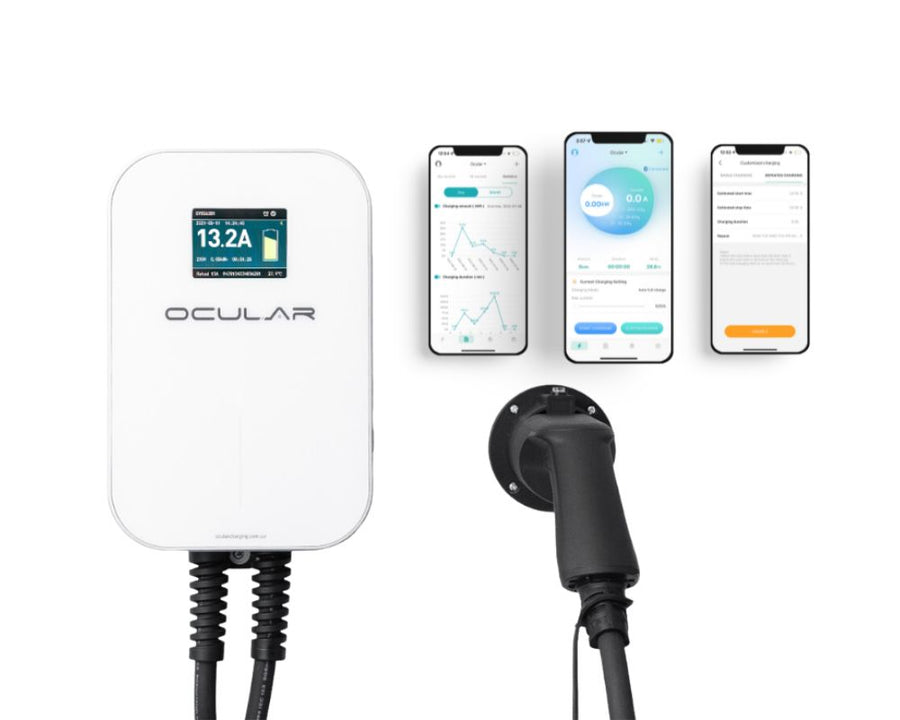

Ocular LTE Plus V3 22kW Three Phase EV Charger – 6m Type 2 Cable

Powerful, Smart & Reliable Three-Phase EV Charging

The Ocular LTE Plus V3 22kW is a powerful three-phase EV charger designed for drivers who want fast home charging combined with convenient smart controls.

Delivering up to 22kW at 32A per phase, it features a permanently attached 6-metre Type 2 charging cable, a clear 3.5-inch LCD display and smart charging controls through the Ocular mobile app.

The Bluetooth-connected app allows you to schedule charging sessions, monitor energy consumption and export charging data, giving you greater control over when and how your EV charges.

Key Features

• 22kW three-phase AC charging – up to 32A per phase
• 6m tethered Type 2 charging cable
• 3.5-inch LCD display with LED status indicators
• Bluetooth-connected mobile app
• Smart charging schedules
• Energy consumption monitoring
• Charging data export
• App, physical button and start-on-plug controls
• OCPP 1.6J support via Ethernet – additional configuration required
• Integrated energy meter
• IP55 rated for indoor and outdoor installation
• Operating temperature from -30°C to +55°C
• Built-in 30mA AC + 6mA DC residual-current protection
• Over-current protection
• Short-circuit protection
• Over-voltage and under-voltage protection
• Ground-fault protection
• Lightning surge protection
• Over-temperature protection
• Earth-leakage protection
• RCM certified
• 3-year warranty

Fast Three-Phase Charging

With up to 22kW of AC charging power, the Ocular LTE Plus V3 is ideal for homes with three-phase power and EVs capable of accepting higher AC charging rates.

Actual charging speed will depend on your vehicle’s onboard AC charger, available electrical supply and installation configuration.

Smart Charging at Home

Schedule charging sessions to take advantage of lower electricity tariffs, monitor energy consumption through the mobile app and view live charging information directly on the charger’s LCD display.

With its compact design, 6m tethered cable and indoor/outdoor rating, the Ocular LTE Plus V3 22kW delivers a practical combination of high-power charging, smart functionality and everyday convenience.

Specifications

Power Output: 22kW Three Phase
Maximum Current: 32A per phase
Voltage: 230V ±20% per phase
Connector: 6m Tethered Type 2 Cable
Display: 3.5-inch LCD + LED Indicators
App Connection: Bluetooth
OCPP: OCPP 1.6J via Ethernet
IP Rating: IP55
Operating Temperature: -30°C to +55°C
Integrated Meter: Yes
Mounting: Wall Mount
Dimensions: 318 × 200 × 80mm
Weight: 8.5kg
Certification: RCM
Warranty: 3 Years
