Ocular LTE Plus V3 | w/6m Type 2 Cable | 7kW Single Phase

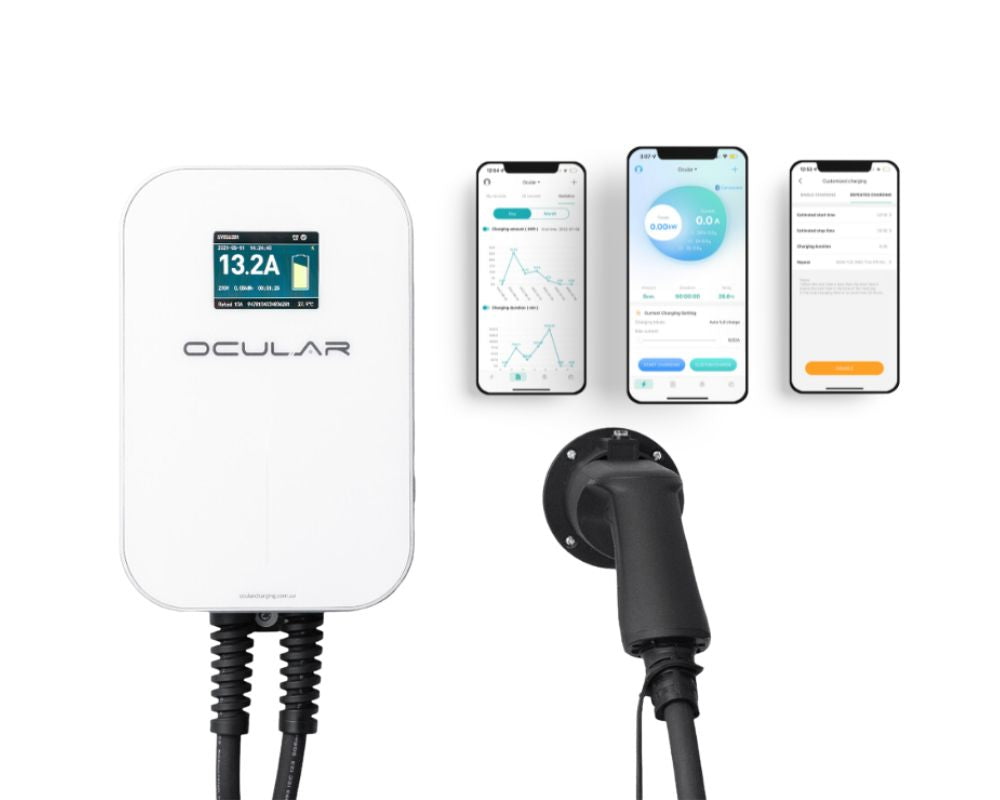

Ocular LTE Plus V3 7.2kW Single Phase EV Charger – 6m Type 2 Cable

Smart, Convenient & Reliable Home EV Charging

The Ocular LTE Plus V3 is a feature-packed single-phase EV charger designed to make everyday home charging simple and convenient.

Delivering up to 7.2kW at 32A, it features a permanently attached 6-metre Type 2 charging cable, a clear 3.5-inch LCD display and smart charging controls through the Ocular mobile app.

The Bluetooth-connected app allows you to schedule charging sessions, monitor energy consumption and export charging data, giving you greater control over when and how your EV charges.

Key Features

• 7.2kW single-phase charging – up to 32A
• 6m tethered Type 2 charging cable
• 3.5-inch LCD display with LED status indicators
• Bluetooth-connected mobile app
• Smart charging schedules
• Energy consumption monitoring
• Charging data export
• App, physical button and start-on-plug controls
• OCPP 1.6J support via Ethernet – additional configuration required
• Integrated energy meter
• IP55 rated for indoor and outdoor installation
• Operating temperature from -30°C to +55°C
• Built-in 30mA AC + 6mA DC residual-current protection
• Over-current protection
• Short-circuit protection
• Over-voltage and under-voltage protection
• Ground-fault protection
• Lightning surge protection
• Over-temperature protection
• Earth-leakage protection
• RCM certified
• 3-year warranty

Smart Charging at Home

Schedule your EV to charge when electricity rates are lower, monitor energy consumption through the mobile app and view live charging information directly on the charger’s LCD display.

With its compact design, long 6m tethered cable and indoor/outdoor rating, the Ocular LTE Plus V3 7.2kW is a practical and convenient smart EV charging solution for Australian homes.

Specifications

Power Output: 7.2kW Single Phase
Maximum Current: 32A
Voltage: 230V ±20%
Connector: 6m Tethered Type 2 Cable
Display: 3.5-inch LCD + LED Indicators
App Connection: Bluetooth
OCPP: OCPP 1.6J via Ethernet
IP Rating: IP55
Operating Temperature: -30°C to +55°C
Integrated Meter: Yes
Mounting: Wall Mount
Dimensions: 318 × 200 × 80mm
Weight: 6.5kg
Certification: RCM
Warranty: 3 Years
