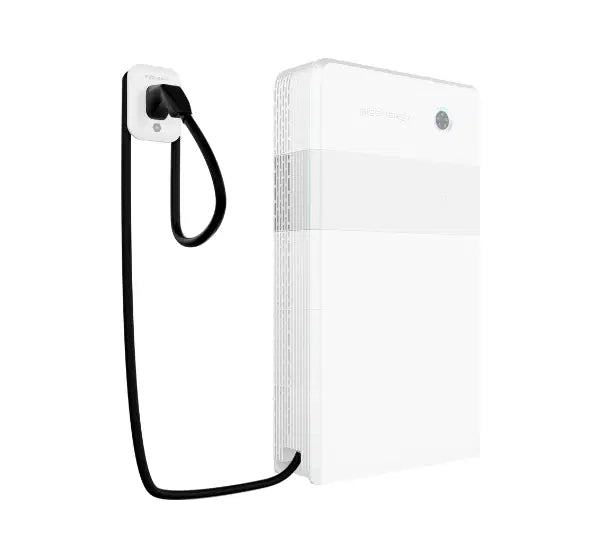

SIGEN EV DC CHARGING MODULE 12KW

SIGEN EV DC CHARGING MODULE 12KW

$3,500.00
In stock

SIGEN EV DC Charging Module 12kW

The SIGEN EV DC Charging Module 12kW is a premium DC fast charging solution designed exclusively for the Sigenergy SigenStor energy system. By integrating directly with the Sigen Energy Controller, it delivers rapid DC charging, intelligent energy management, and future-ready bidirectional (V2X) capability, making it one of the most advanced residential EV charging solutions available.

Datasheet-EN 2.pdf

Unlike conventional AC chargers, the Sigen EV DC Charging Module charges your vehicle using direct current (DC), bypassing the vehicle’s onboard charger for significantly faster charging speeds while intelligently managing solar generation, home battery storage, and grid power.

Key Features

  • 12.5kW DC Fast Charging
    • Rapid charging directly to your EV via CCS2.
    • Up to 12.5kW charging and discharging power.
  • Future-Ready Bidirectional (V2X)
    • Supports Vehicle-to-Home (V2H), Vehicle-to-Grid (V2G), and other V2X applications as supported by compatible vehicles and future software updates.
  • 100% Solar Charging
    • Prioritises excess rooftop solar to charge your EV using renewable energy.
    • Supports Battery Boost and Grid Charging when additional charging speed is required.
  • Intelligent Fast Charging
    • Combines available solar and grid power for the fastest possible charging.
    • Optional battery assistance further increases charging performance.
  • Universal EV Compatibility
    • Wide operating voltage range of 150–1000V DC.
    • Compatible with CCS2-equipped electric vehicles.
  • Built for Australian Conditions
    • IP66 weatherproof rating.
    • Smart air cooling system.
    • Operating temperatures from -30°C to +60°C.
    • Suitable for installations up to 4,000 metres altitude.

Smart Features

  • RFID card authentication
  • Mobile app control
  • Scheduled charging
  • OTA (Over-the-Air) software updates
  • Remote diagnostics
  • LED status indicator
  • OCPP 1.6J communication protocol
  • Smart load management

Safety Protection

The Sigen EV DC Charging Module includes comprehensive protection systems including:

  • Short circuit protection
  • Over and under-voltage protection
  • Overload protection
  • Over-temperature protection
  • Reverse polarity protection
  • Welded contactor detection

Technical Specifications

Specification

Details

Charging Power

12.5kW DC

Discharging Power

12.5kW

Charging Connector

CCS2

Operating Voltage

150–1000V DC

Maximum Current

40A

Protection Rating

IP66

Cooling

Smart Air Cooling

Authentication

RFID / App / None

Cable Length

7.5m or 10m integrated cable

Dimensions

700 × 270 × 260 mm

Weight

39kg (7.5m cable) / 41kg (10m cable)

Designed for the SigenStor Ecosystem

The Sigen EV DC Charging Module must be installed alongside the Sigenergy Sigen Energy Controller, forming part of the integrated SigenStor home energy system. This enables seamless coordination between:

  • Rooftop Solar
  • Home Battery Storage
  • Electric Vehicle
  • Grid Connection
  • Home Energy Management

The result is a complete energy ecosystem that maximises self-consumption, reduces electricity costs, and prepares your home for the future of bidirectional EV charging.
